Model Number:
Description:

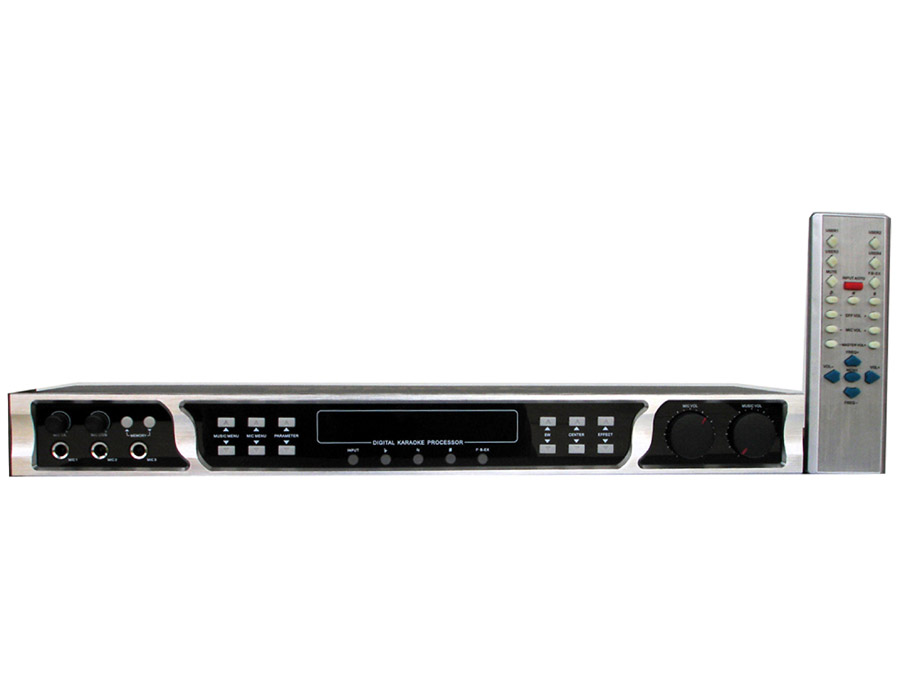

This is the ultimate Digital Karaoke Processor.
The DSP-220, it hosts features like 4 User Defined Effects, Digital Key Control, 5 Microphone inputs (3 front and 2 rear) with BGM (Back Ground Music) input option and Digital Echo/Reverb settings and allows you to connect the DSP-220 between a range of other amplifiers and speakers
DSP-220 = Free-back suppressor +Aural excitor + Graphic equalizer +DSP processor +Effect processor + Reverberation unit + Delayer
1. LCD, menu regulatory function
2. Audio frequency divider adjustable built-in ultra-low, can set the volume you wanted
3. Search the exact signal automatically
4. BGM background music automatic focusing function
5. Multi-signal input and DIG input
6. Maximum volume preset function protection
7. Treble/Bass/sub-woof for digital balance
8. Rising and falling intonation restore automatically
9. Sub-woof LPF can be set up between 40-150Jz
10. Music balance
11. 2CH, 3CH, 4CH, 5CH for accompaniment
12. S Volume for regulating surround channel
13. Surround sel function
14. Center volume
15. Music auto level
16. Music vocal
17. Microphone volume: MIC maximum volume setting
18. Effect volume
19. F.B-EX design can completely solve the problem of free-back interference
20. Feedback-time
21. Microphone exciter
22. Reverb time
23. Reverb VOL
24. Echo delay
25. Microphone Equalizer
26. Noise Gate
27. Echo mode 4
28. Memory/ Recall DIY function
Aux / Digital (S/PDIF) / BGM / VCR / DVD or Auto Detect.
Subwoofer and Center:
Volume Controls, Effect Volume Control.
Digital Key Control: 10 Steps -5 / +5.
Feedback Mode: 1, 2, 3 or Off.
User Mode: 4 Memory Settings.
Music Menu: D
igital Frequency Selector: 44.1KHZ or 48KHZ, Max Music Volume, Digital Microphone Volume, Subwoofer Reducer, Subwoofer LPF (with Frequency Adjust), Music Auto Level (1-6 or off), Music Vocal (L/R), S Volume(0-20 or off), Surround Select (L/R or L-R), Music Balance (-10 / +10), Music Treble / Bass / Mid (-10 / +10), BGM (Back Ground Music).
Microphone Menu:
Microphone Exciter, Feedback Time (Variable), Microphone 5 Band Equalizer (8, 2.7, 900, 300, 100Hz), Reverb Level, Reverb Time, Echo Repeat, Echo Mode (Single, Stereo, Stereo+), Echo Delay, Maximum Microphone Volume, Noise Gate, Opertional Mode (L/R, C, L/C/R, SL/L/C/R/SR, SL/C/SR).
Other:

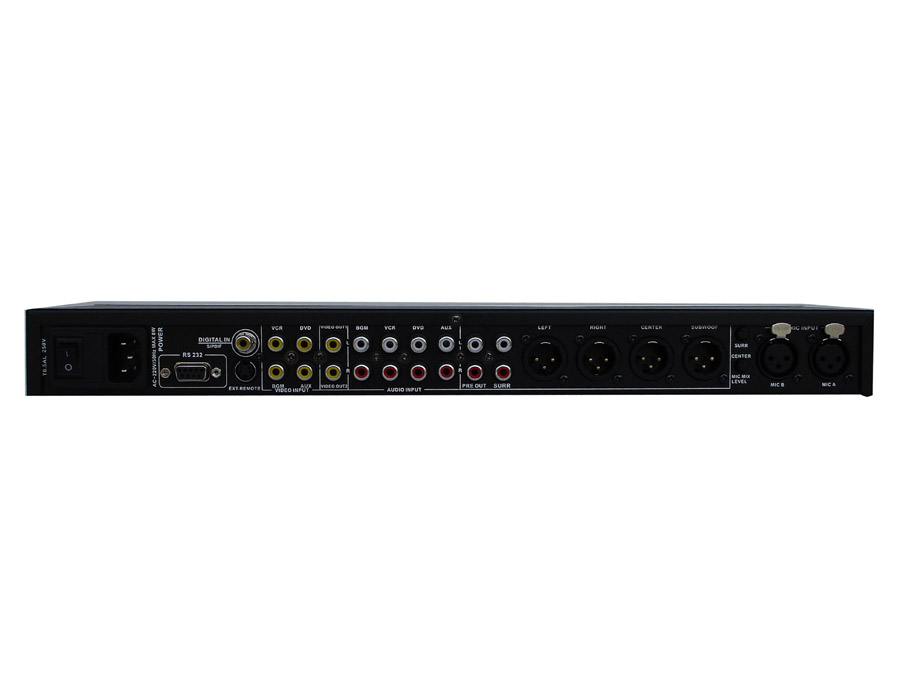

5 Microphone Inputs (3x Front {6.35mm Jack} / 2x Rear {XLR}), Mic 1 and 2 Effect Control, RS-232 Computer Connection Port, External Remote Port, Mic Surround Channel Effect Control (Rear), Mic Center Channel Effect Control (Rear), 4x RCA Video In (VCR/AUX/BGM/DVD), 2x RCA Video Outs, Stereo (L/R) 4x RCA Stereo Audio Inputs (VCR/AUX/BGM/DVD), Stereo Preout, Stereo Surround RCA outs, XLR Left/Right/Center/Subwoofer), 220V AC Power, Dimensions: 43cm (W) x 11.5cm (D) x 5cm (H).
The product covers 12 months warranty
