CDM-500CTUSB
CDM-500CTUSB
click images to enlarge

Model Number:

CDM-500CTUSB

Description:

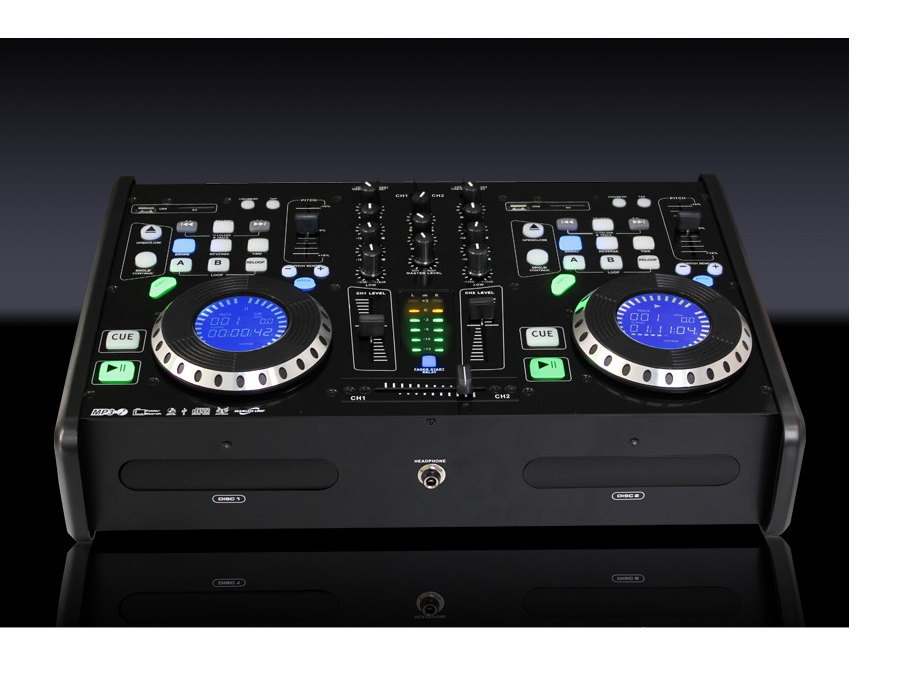

DJ DUAL CD PLAYER

CDM-500CTUSBPrint The Brochure           CDM-500CTUSB
DJ DUAL CD PLAYER






﹡Options:SCRATCH/DSP EFFECT/USB INPUT/AMPLIFIE

﹡Compatible with CD,CD-R,MP3,with full DJ control.

﹡Full viewing direction display with ID3 TAG(MP3).

﹡CD/Phono/Line/Mic input

﹡Pitch V.R adjust the desired speed.

﹡Control function:open/close,play/pause,stop, cue,skip+/-,+10,search+/-,time,single/continue,repeat, program,loop,reloop(IN&OUT),pitch+/-(16%),jog searching+-

﹡Anti-shock system 20secs.

﹡Single / continuous play mode.

﹡CUE on and off switch for each channel.

﹡Assign cross fader.

﹡Cross fader control CD play and pause.

﹡2 channel RCA master output & 2 channel REC output.

﹡2 channel MIXER & 3 band EQ control..




﹡Type:Dual Compact Disc Player with Integrated Audio Mixer

﹡Disc Type:Standard Compact discs(12cm & 8cm)

﹡Time Display:Track Elapsed , Track remain, or Total Remain

﹡Variable Pitch:±16% Slider with Resume Switch

﹡Pitch Bend:±16% Maximum

﹡Instant Start:Within 0.03 Seconds

﹡Bass (Channels 1&2):+/-12dB

﹡Mid (Channel 1&2):+/-12dB

﹡High (Channel 1&2):+/-12dB

﹡Gain (Channel 1&2):0 to -20 dB

﹡Headphone Impedance:32 Ohm

﹡RRequency Response:20Hz-20kHz

﹡Distortion:< 0.02%

﹡S/N Ration:> 80 dB

﹡Quantization:1 Bit Linear/Channel,3 Beam Laser

﹡Oversampling Rate:8 Times

﹡Sampling Frequency:44.1 kHz

﹡Channel Separation:55dB(1kHz)

﹡Phono Sensitivity:10mV, 47kOhm

﹡Line Sensitivity:1V,10kOhm

﹡MIC Sensitivity:10mV, 600 Ohm

﹡EQ Control(3 BAND):±12dB

﹡Line Output:1.9V, 600 Ohm

﹡REC Output:1.9V, 600 Ohm

﹡Power Supply:World Wide Voltage AC100~240V,60/50 Hz

﹡Dimension: W482xD260xH140mm

12 months warranty
