Karaoke amplifier with unique feature: USB/SD card slot.
you can down load audio file to your USB stick or SD card in MP3 format , and just plug it to the slot, The amplifier will play the songs/music while you singing or playing music instrument.
It has loudness enhancement key to boost bass and treble for Rock & Roll , Disco or heavy metal music/song.
it also has LCD digital sound level/function display , 4 frequencies master volume controls and lots more...

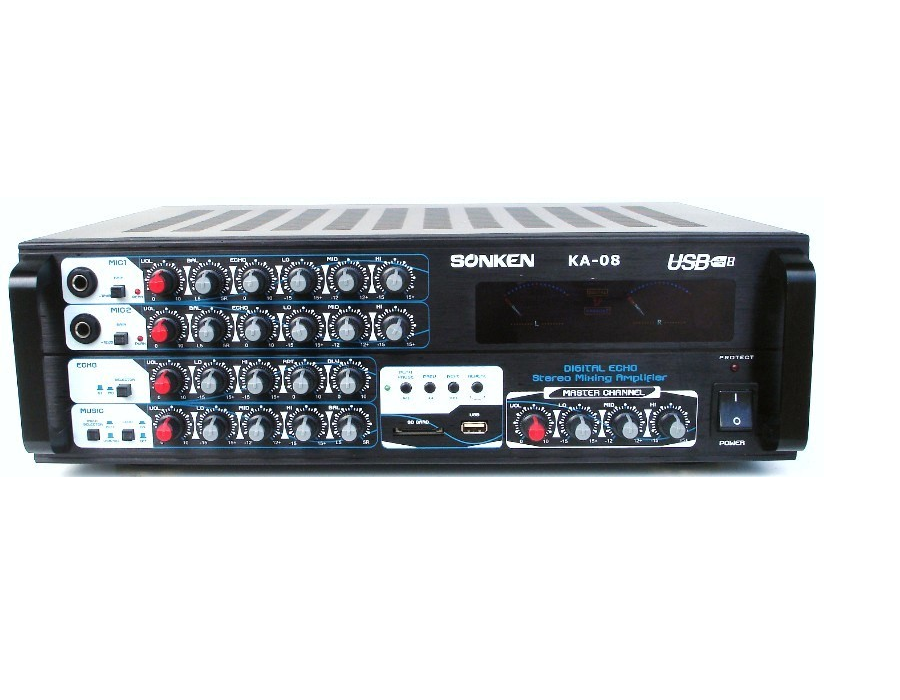

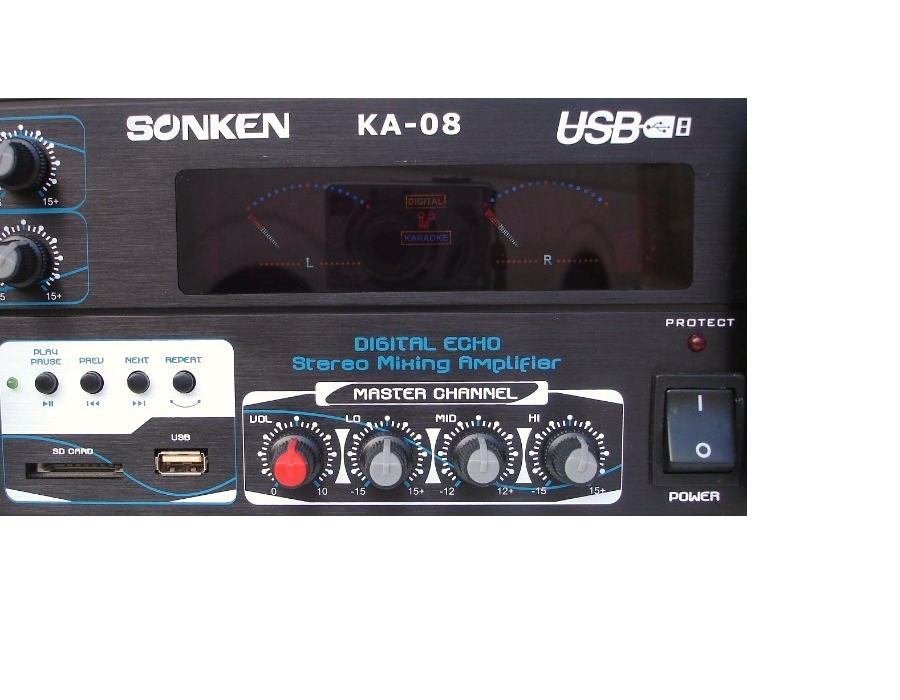

Front Panel Features
A:Power ON/OFF button
B:Usb/Sd Card (Mp3) Music Play Function Selector
C:Usb/Sd Card (Mp3) Music Play Input
D:Loudspeaker short-circuit protection Led
E:Function Display
MICROPHONE
1:MIC1 Input And MIC5 Input Jack
2:GAIN-20dB Attenuation Key
3:MIC1 Vol And MIC2 Vol Controlling Knob
4:BAL-Left And Right Track Balance Knob
5:ECHO-Profundity Knob
6:LO-Bass Adjustment Knob
7:MID-Mediant Adjustment Knob
8:HI-Treble Adjustment Knob
ECHO
2:SELECTOR ST MO-Stereo And Mono Diversion
3:VOL-Volume Knob: Revolve This Knob to Adjust Volume
4:LO-Bass Control Knob: Revolve This Knob to Adjust Bass
5:HI-Treble Control Knob: Revolve This Knob to Adjust Treble
6:RPT-Repeating Knob: Revolve This Knob to Adjust Repeating Times
7:DLY-Delay Echo Knob: Revolve This Knob to Delay Echo
MUSIC
1:AUX/ USB Manual Input Selector
2:Loudness Off/On Selector
3:Music Vol Controlling Knob
4:BAL-Left And Right Track Balance Knob
5:LO-Bass Control Knob
6:MID-Mediant Control Knob
7:HI-Treble Control Knob
MASTER CHANNEL
1:Master Vol Controlling Knob
2:LO-Bass Control Knob
3:MID-Mediant Control Knob
4:HI-Treble Control Knob

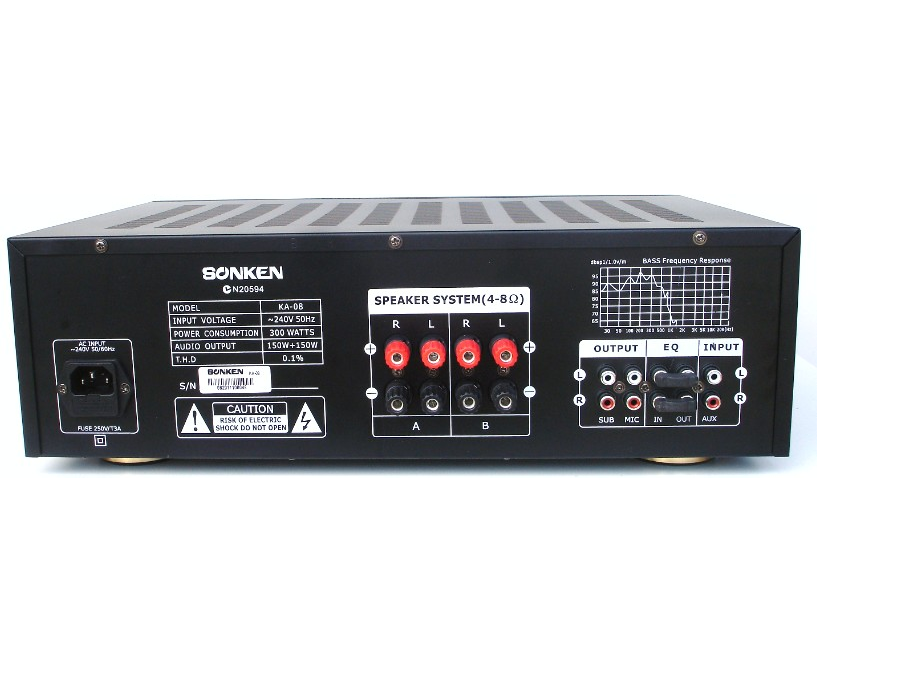

Rear Panel Features
1:AC 240V Input
2:FUSE - Please confirm the fuse rated capacity when change it
3:SPEAKER SYSTEM - The red port stands for "+" and the black
port stands for "-".For the better sound effect, please connect
the left/right speaker with left/right ports correctly.
4:SUBWOOFER OUT - Able to connect to active subwoofer
input jack
5:Effect Input/ Output Jack
6:AUX /DVD/VCD/CD Audio Input Jack
Advance Operation
Switching A/V Channels
Since the KA-08 has 1 A/V inputs ,you can switch between them via the INPUT button . Let´s say you are performing
live ,and want to do 4 songs back to back ,but they are on different discs! Instead of stopping to switch CD´
S between songs (not very good for live performances),have a disc queued in A/V 2-4,and simply hit the INPUT
button and PLAY ,you are back in action!
Balancing the Music with the Vocals
Have you ever been to a musical performance where the music was so loud that you could barely hear the singer?
Or maybe to a performance where the singer was so loud hat the music was drowned out ? Those situations are
created with poor musical balancing. To avoid these situations ,the KA-08 has a MASTER ,BASS ,MID and TREBLE
control for both the music and the Mic levels .If you find that music
is too loud ,simply adjust the MASTER
MUSIC control knob for the music ,Also ,keep in mind that BASS ,
MID and TREBLE levels also affect the overall
"sound"and can be adjusted to correct sound balancing problems.
Balancing Microphone Levels
When adjusting Mic levels ,it is recommended to do so in this order:
1)Cut off the Echo and back ground music.
2)First adjust the MASTER MIC control knob to an appropriate level without background music and test.
3)Then balance the BASS ,MID and TREBLE levels for fine tuning . A just these knobs till no feed-back from the MIC.
4)Start background music and adjust each MIC CHANNEL accordingly.
5)Remember to compensate if the background music has striking volume changes.
6)Do a complete song for complete balancing success.
Using Digital Echo
The KA-08 has a built in , adjustable Digital Echo effects processor that can really add a spacious feeling to the vocals .you can adjust ECHO is several ways .First .you can adjust the overall ECHO applied to the Mic
channels via the DIGITAL ECHO control knob .This limits the echo to all 3 channels together. Once you have your
master ECHO level established ,you can start customizing the nature of the echo via the DELAY and REPEAT
controls .The DELAY knob controls the interval time between each echo and the REPEAT knob controls the # of
times the echo will repeat. By fine tuning these controls .you can start customizing the nature of the echo via
the DELAY and REPEAT controls. The DELAY knob controls the interval time between each echo and the REPEAT
knob controls the times the echo will repeat .By fine tuning these controls. you can achieve the "perfect"
echo effect. Each Mic channel has it´s own DIGITAL ECHO VOL knob to adjust echo individually, To add, turn
clockwise ,To remove ,turn counter-clockwise.
Specifications
Amplifier Section
Power Consumption 300W
Audio Output 150W+150W
Input Impedance 47KΩ
Bass Control +/-15dB(100Hz)
Mid Control +/-15dB(1KHz)
Treble Control +/-15dB(10KHz)
T.H.D <0.1%
Frequency Response 20Hz-20KHz -1dB
Noise Ratio >90dB
Power Source 240V/50Hz
Dimension 430(W)X126(H)X300(D)MM
Weight: 6KG
Microphone Section
Connector 1/4"TRS/Unbalanced
Input Impedance 1.5KΩ
Input Sensitivity 10mV
T.H.D <0.5%
Frequency Response 20Hz-15KHz -3dB
Noise Ratio >85dB
Bass Control +/-15dB(100Hz)
Mid Control +/-15dB(1KHz)
Treble Control +/-15dB(10KHz)
Digital Echo Up to 300ms
12 MONTHS WARRANTY
